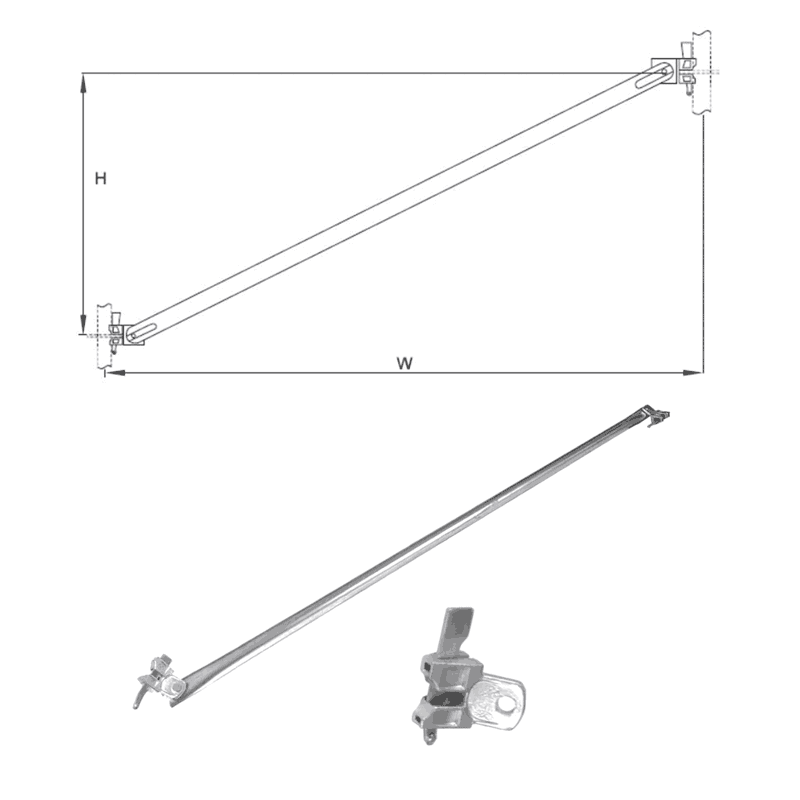

Diagon Brace of Ringlock Scaffolding

Diagon Braces are essential for stabilizing and stiffening the ringlock scaffold system, particularly in high-rise applications.
We offer a ring lock scaffold standard system that complies with EN 12811-1 and OSHA standards, and its size, thickness and surface treatment are fully customizable. Please request a quotation to learn about tailor-made solutions.

Material: Q235 / S235JR, Q195 / S195JR
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm, 42mm
Thickness: 3.2mm / 3.0mm / 2.75mm / 2.5mm
W: 0.6m/0.73m/0.9m/1.09m/1.2m/1.4m/1.5m/1.57m/1.8m/2m/2.07m/2.57m/3.07m
H: 0.5m/1m/2m
Product Code: RD6015 – RD307

Add to quote
SKU： RD6015-RD307 分类： 标签： , , , , ,

Code# Specification(WxH) Material Diameter Thickness Note
cm mm inch mm mm
RD6015 60×150 600×1500 2’x4’11” Q235

S235JR
or
Q195

S195JR

 48.3/42 3.2/3.0/2.75/2.5 for OD48.3

2.75/2.5
for OD42

 A
RD6020 60×200 600×2000 2’x6’6” A
RD9015 90×150 900×1500 3’x4’11” A
RD9020 90×200 900×2000 3’x6’6” A
RD1215 120×150 1200×1500 3’11”x4’11” A
RD1220 120×200 1200×2000 3’11”x6’6” A
RD1515 150×150 1500×1500 4’11”x4’11” A
RD1520 150×200 1500×2000 4’11”x6’6” A
RD1815 180×150 1800×1500 5’11”x4’11” A
RD1820 180×200 1800×2000 5’11” x6’6” A
RD2015 200×150 2000×1500 6’6” x4’11” A
RD2020 200×200 2000×2000 6’6” x 6’6” A
RD73 73×200 730×2000 2’5” x 6’6” B
RD109 109×200 1090×2000 3’7” x 6’6” B
RD140 140×200 1400×2000 4’7” x 6’6” B
RD157 157×200 1570×2000 5’2” x 6’6” B
RD207 207×200 2070×2000 6’10”x6’6” B
RD257 257×200 2570×2000 8’5” x 6’6” B
RD307 307×200 3070×2000 10′ x 6’6” B

*Note “A” Diagon Brace size are commonly used in Asian and African markets;

*Note “B” Diagon Brace size can be replaced by European and American brands;

*H=0.5m/1m/2m;

*W=0.6m/0.73m/0.9m/1.09m/1.2m/1.4m/1.5m/1.57m/1.8m/2m/2.07m/2.57m/3.07m.
