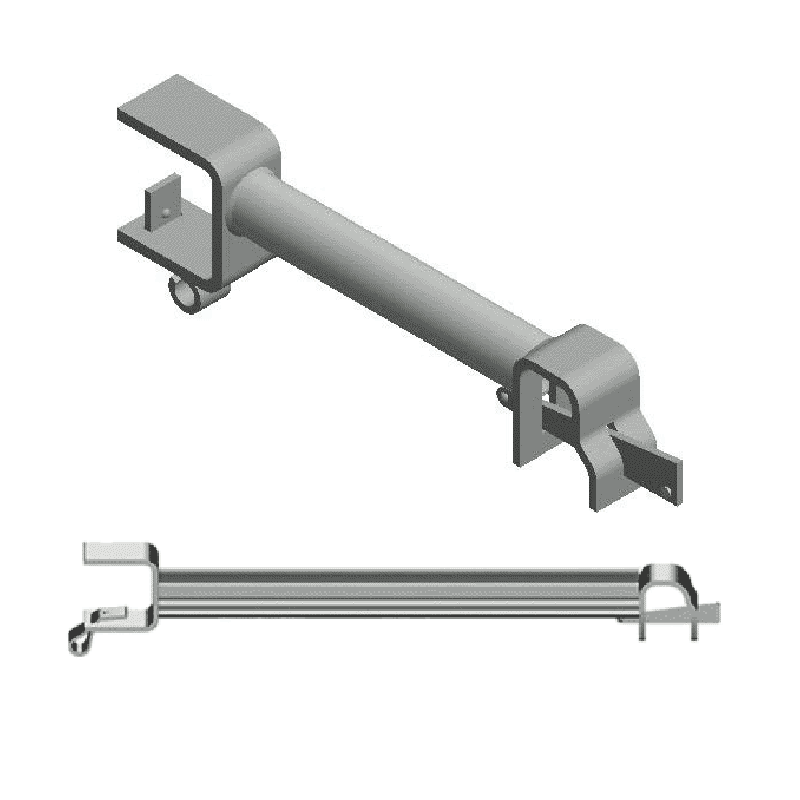

Transom Ledger To Plank of Ringlock Scaffolding

Ringlock-Scaffolding-Transom-Ledger-To-Plank

Transom Ledger To Plank of Ringlock Scaffolding

Transoms can also be used to create openings within the planked bay for Ladder access or to avoid a permanent obstruction.

We offer a ring lock scaffold standard system that complies with EN 12811-1 and OSHA standards, and its size, thickness and surface treatment are fully customizable. Please request a quotation to learn about tailor-made solutions.

Material: Q235 / S235JR
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm, 55x50mm
Thickness: 3.2mm / 3.0mm
Length: 0.24-0.96m
Product Code: RTLP24 – RTLP96

Add to quote
SKU： RTLP24-RTLP96 分类： 标签： , , , , , , ,

Code# Length Material Diameter Thickness Note
cm mm inch mm mm
RTLP24 24 240 5’11” Q235/S235JR 48.3
55x55x50		 3.2/3.0 A
RTLP32 32 320 6’6” B,U
RTLP48 48 480 6’10” A
RTLP64 64 640 8’5” B,U
RTLP72 72 720 9’10” A
RTLP96 96 960 10′ B,U

*Note “A” Transom Ledger To Plank is suitable for 240mm wide O-Type & C-Type & Flat Hook Planks;

*Note “B” Transom Ledger To Plank is suitable for 320mm wide O-Type & C-Type & Flat Hook Planks;

*Note “U” Transom Ledger To Plank is suitable for 320mm wide U-Type Planks.
