Transoms can also be used to create openings within the planked bay for Ladder access or to avoid a permanent obstruction.
We offer a ring lock scaffold standard system that complies with EN 12811-1 and OSHA standards, and its size, thickness and surface treatment are fully customizable. Please request a quotation to learn about tailor-made solutions.
Material: Q235 / S235JR
Surface Treatment: Hot-dip Galvanized
Diameter: 48.3mm, 55x50mm
Thickness: 3.2mm / 3.0mm
Length: 0.24-0.96m
Product Code: RTPP24-RTPP96
| Code# | Length | Material | Diameter | Thickness | Note | ||
| cm | mm | inch | mm | mm | |||
| RTPP24 | 24 | 240 | 9.5” | Q235/S235JR | 48.3 55x55x50 |
3.2/3.0 | A |
| RTPP32 | 32 | 320 | 6’6” | B,U | |||
| RTPP48 | 48 | 480 | 6’10” | A | |||
| RTPP64 | 64 | 640 | 8’5” | B,U | |||
| RTPP72 | 72 | 720 | 9’10” | A | |||
| RTPP96 | 96 | 960 | 10′ | B,U | |||
*Note “A” Transom Plank To Plank is suitable for 240mm wide O-Type & C-Type & Flat Hook Planks;
*Note “B” Transom Plank To Plank is suitable for 320mm wide O-Type & C-Type & Flat Hook Planks;
*Note “U” Transom Plank To Plank is suitable for 320mm wide U-Type Planks.

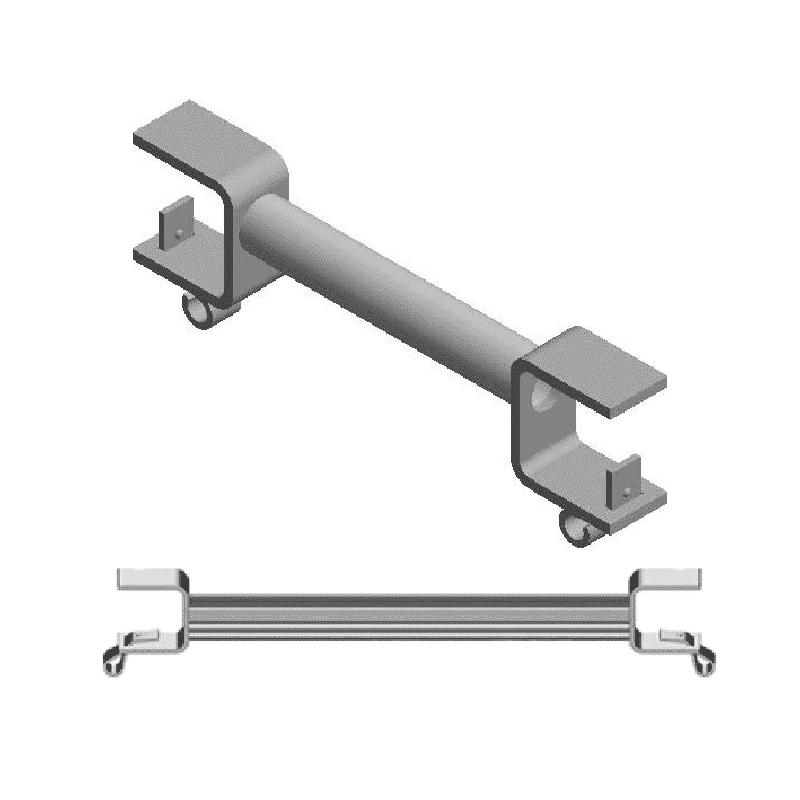

Transom Plank To Plank of Ringlock Scaffolding
